T5S - T4S

Horizontal ice cream machine





T5S

production per hour        :      15-18 kg

production per cycle       :              3 kg

production time                :      10-12 min



T4S

production per hour        :     24-30 kg

production per cycle       :              4 kg

production time                :        8-10 min





The ice cream machine of the “T” series are the answer to the operators’ requirements for a professional machine to produce high-quality desserts in smaller quantities with reduced investments.

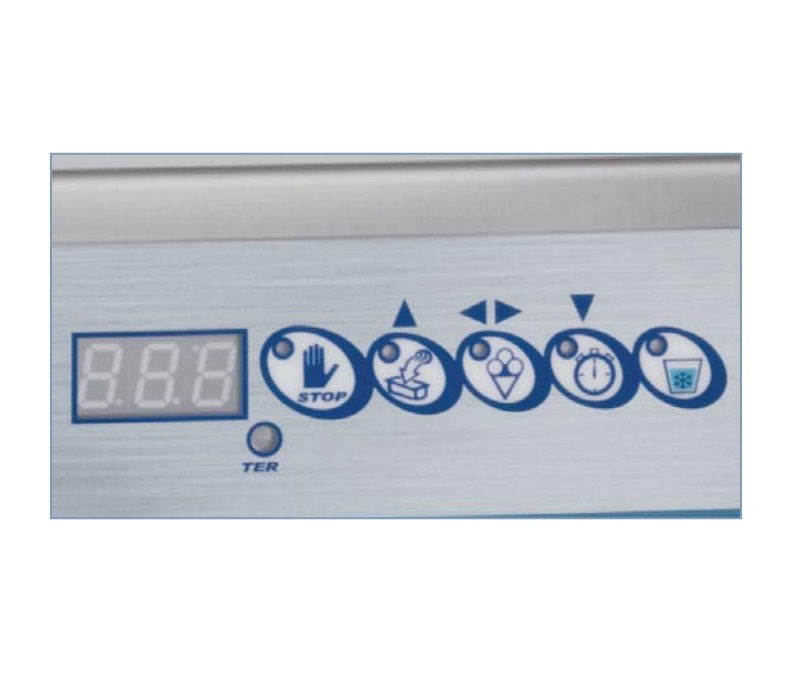

Through the electronic control the operator can choose among four programmes for the production of ice cream and slush with the possibility to determine consistency values, times and agitation modes





CHARACTERISTICS



  • Automatic freezing cycle to reach the ideal consistency according to the type and quantity of mix introduced
  • Automatic freezing cycle “PLUS” for higher consistency levels
  • Semi-automatic freezing cycle with consistency level setting
  • Semi-automatic freezing cycle with working time setting
  • Slush cycle with consistency level and continuous agitation setting
  • Slush cycle with time and cyclic agitation setting
  • Automatic consistency preservation at the end of the cycle
  • High production flexibility

Frigomat T5S - Horizontal ice cream machine

฿666,000.00Price
  • Performance

    T5S



    production per hour      : 15-18 kg

    production per cycle     : 3 kg

    production time              : 10-12 min



    T4S



    production per hour       : 24-30 kg

    production per cycle      : 4 kg

    production time               : 8-10 min

  • Power supply

    T5S

    230V / 50Hz / 1Ph - 1 / 1.8kW

    Air cooling



    T4S

    400V / 50Hz / 3Ph - 3 / 2,8kW

    230V / 50Hz / 1Ph - 1 / 2,8kW

    Air cooling



    T4S

    400V / 50Hz / 3Ph - 3 / 2,7kW

    230V / 50Hz / 1Ph - 1 / 2,7kW

    Water cooling

  • Dimensions

    T5S

    W x D x H

    44 x 82 x 69

    82 kg



    T4S

    W x D x H

    44 x 81 x 126

    175 kg (400V) (Air cooling)

    178 kg (230V) (Air cooling)

    170 kg (400V) (Water cooling)

    173 kg (230V) (Water cooling)
