GX2 - GX4 - GX6 - GX8

GX4 Kompact

Fresh ice cream machine

























GX2

2 cylinders



production per hour        :         12.5 kg        1 cylinder

production per hour        :        25.0 kg        2 cylinders

production per cycle       :           2.5 kg

production time                :      12-15 min



GX4

GX4 Kompact

4 cylinders



production per hour        :         12.5 kg        1 cylinder

production per hour        :        50.0 kg       4 cylinders

production per cycle       :           2.5 kg

production time                :      12-15 min



GX6

6 cylinders



production per hour        :         12.5 kg        1 cylinder

production per hour        :        75.0 kg       6 cylinders

production per cycle       :           2.5 kg

production time                :      12-15 min



GX8

8 cylinders



production per hour        :         12.5 kg        1 cylinder

production per hour        :      100.0 kg       8 cylinders

production per cycle       :           2.5 kg

production time                :      12-15 min





The GX-series, Fresh ice cream machines are unique ice cream machines and easy to use

Ideal for serving Fresh ice cream to the customers



"Ice cream taste the best when it's served directly Fresh from the ice cream machine"



This NEW way of serving ice cream starts to get more and more popular in the world

People who experienced this, understand that there is no better way to enjoy ice cream



Suitable for any balanced ice cream recipe

Also great for serving your Fresh ice cream in combination with other Fresh ingredients, like Fresh fruit, nuts, chocolate pieces, variegates, etc

An innovative way to present your ice cream "creations" live for your customers



Perfect for ice cream makers who want to serve their ice cream on a Top level



With the GX-series you can reduce the investment of some of the machines which you need for the process of your ice cream business,

like ice cream display, shock freezer, storage freezer and ice cream machine



The GX machine is actually a 4-in-1 concept

(4 machines ≈ 1 GX machine)





CHARACTERISTICS



  • Independent production groups with vertical cylinders
  • 7 electronic programs for the freezing of gelato and slush; the new management of production cycles allows to significantly reduce energy and water consumption
  • “Night storage” function to maintain the product during long pauses, with considerable energy saving
  • Floor-standing unit; on wheels
  • Air or water cooling





ADVANTAGES AND PLUSES



  • Enhanced refrigeration system to reduce the freezing cycles and the refill and for a higher consistency of the ice-cream
  • Complete independency of the cylinder for the maximum flexibility of use
  • Possibility to add hard pieces nuts, chocolate, fruit, etc.
  • Steel agitators with easily removable scraper blade for an easy cleaning.
  • Transparent lids, enabling the customer to see and follow the freezing process.
  • “Anti-fog” system (patent pending) to avoid condensation under the lids.

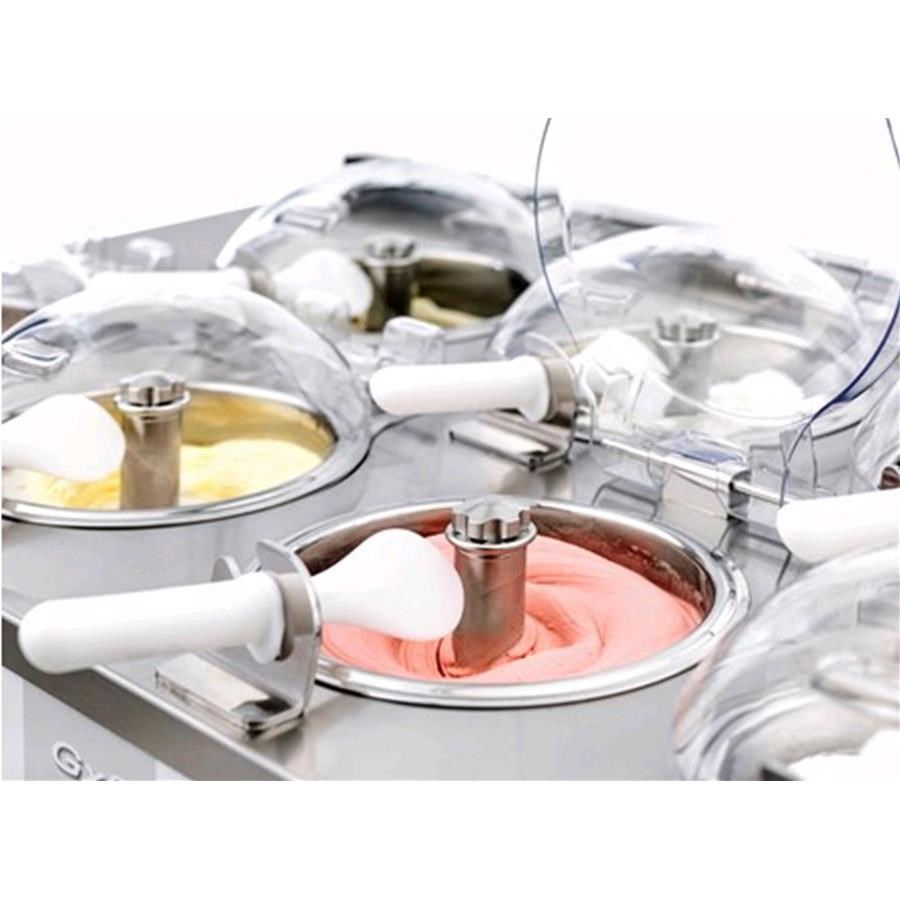

  • Dedicated spatulas (patent) which, through a practica quick release system, set a new standard of hygiene, protecting the product against all kinds of contamination. The part of the spatula in contact with gelato is placed at a negative temperature in the area of the freezing cylinder, protected through the transparent dome lid. The handle remains outside the food area, at room temperature, in the defined position for a visual impact of the bench extremely tidy
  • Safety switch on the lids
  • Cleaning system of the cylinders, directly connected to a removable front drain. Internal preparation for a direct discharge into the water mains
  • Available with protective glass (optional)
  • Customized graphic upon request (optional)

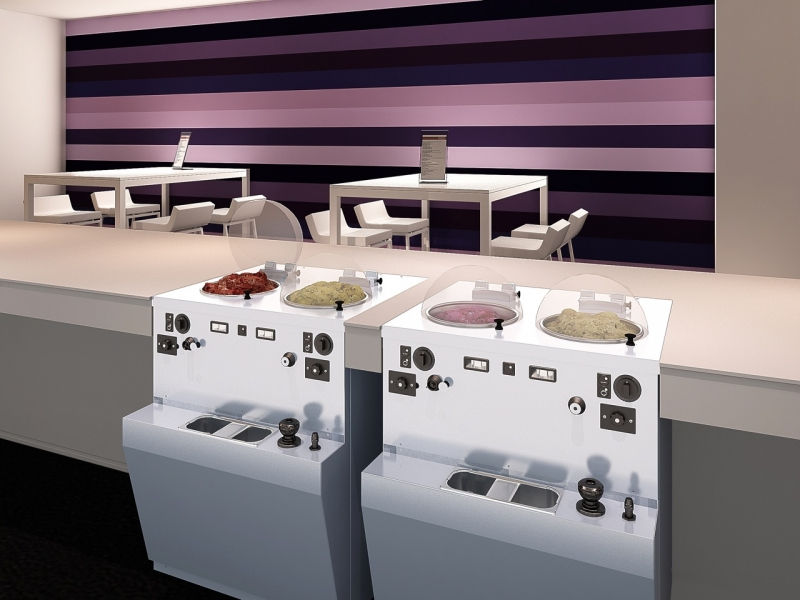

Frigomat GX4 - Fresh ice cream machine

฿1,399,000.00Price
  • Performance

    GX2

    2 cylinders



    production per hour        :         12.5 kg

    1 cylinder

    production per hour        :        25.0 kg

    2 cylinders

    production per cycle       :           2.5 kg

    production time                :      12-15 min



    GX4

    GX4 Kompact

    4 cylinders



    production per hour        :         12.5 kg

    1 cylinder

    production per hour        :        50.0 kg

    4 cylinders

    production per cycle       :           2.5 kg

    production time                :      12-15 min



    GX6

    6 cylinders



    production per hour        :         12.5 kg

    1 cylinder

    production per hour        :        75.0 kg

    6 cylinders

    production per cycle       :           2.5 kg

    production time                :      12-15 min



    GX8

    8 cylinders



    production per hour        :         12.5 kg

    1 cylinder

    production per hour        :      100.0 kg

    8 cylinders

    production per cycle       :           2.5 kg

    production time                :      12-15 min

  • Power supply

    GX2

    400V / 50Hz / 3Ph - 2,4kW

    230V / 50Hz / 1Ph - 2,6kW

    Air cooling



    GX2

    400V / 50Hz / 3Ph - 2,4kW

    230V / 50Hz / 1Ph - 2,6kW

    Water cooling



    GX4

    400V / 50Hz / 3Ph - 4,8kW

    230V / 50Hz / 1Ph - 5,2kW

    Air cooling



    GX4

    400V / 50Hz / 3Ph - 4,8kW

    230V / 50Hz / 1Ph - 5,2kW

    Water cooling



    GX4 Kompact

    400V / 50Hz / 3Ph - 3,6kW

    Air cooling



    GX4 Kompact

    400V / 50Hz / 3 - 3,6kW

    Water cooling



    GX6

    400V / 50Hz / 3Ph - 5,4kW

    Water cooling



    GX8

    400V / 50Hz / 3Ph - 7,2kW

    Water cooling

  • Dimensions

    GX2

    W x D x H

    68 x 72 x 91

    183 kg (400V) (Air cooling)

    186 kg (230V) (Air cooling)

    177 kg (400V) (Water cooling)

    180 kg (230V) (Water cooling)



    GX4

    W x D x H

    132 x 72  x 91

    352 kg (400V) (Air cooling)

    358 kg (230V) (Air cooling)

    340 kg (400V) (Water cooling)

    346 kg (230V) (Water cooling)



    GX4 Kompact

    W x D x H

    83 x 90 x 91

    310 kg (Air cooling)

    304 kg (Water cooling)



    GX6

    W x D x H

    115 x 90 x 91

    415 kg (Water cooling)



    GX8

    W x D x H

    146 x 90 x 91

    545 kg (Water cooling)
